Tilt and Trim Parts 7050 for CMC T-H Marine - ELCT0078 Standard Hydraulic Actuator for Jack Plate and Tilt & Trim Systems, 12V Self-Contained Marine Hydraulic Unit, 5" Stroke
Product details
| Management number | 218126783 | Release Date | 2026/05/03 | List Price | $213.60 | Model Number | 218126783 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
The 7050 Standard Hydraulic Actuator is a self-contained marine hydraulic actuator designed for CMC and T-H Marine Power-Lift, Hydro-Jacker, and Tilt & Trim units. Compatible with CMC Tilt & Trim, ATLAS Tilt & Trim, CMC Power-Lift hydraulic plates, and T-H Hydro-Jacker units, this actuator integrates the pump, motor, fluid reservoir, and cylinder into a single unit. Made from durable non-ferrous materials and fully submersible, it provides reliable performance in both freshwater and saltwater environments. This actuator is ideal for replacing faulty or worn units and restores smooth lift, trim, and tilt functionality. Not compatible with high-speed hydraulic jack plate models.
- Wide Compatibility - Fits CMC Power-Lift hydraulic jack plates (61001, 61002, 65001, 65002, 65501, 65502), T-H Marine Hydro-Jacker plates (HYJ-6C-DP, HYJ-10C-DP), CMC Power Tilt & Trim units (13001, 13002), and ATLAS Tilt & Trim units (THT-130C-DP). Compatible with late-model systems featuring one-piece motor/hydraulic actuator assemblies
- All-in-One Hydraulic Design - Integrates electric motor, hydraulic pump, fluid reservoir, and cylinder in a single unit, eliminating the need for external hoses, separate pumps, or additional hydraulic components, simplifying installation and reducing potential leak points
- Marine-Grade Construction - Made from 100% non-ferrous materials with a no-leak seal and wiper system to keep dirt and water out, fully submersible for reliable operation in freshwater or saltwater environments

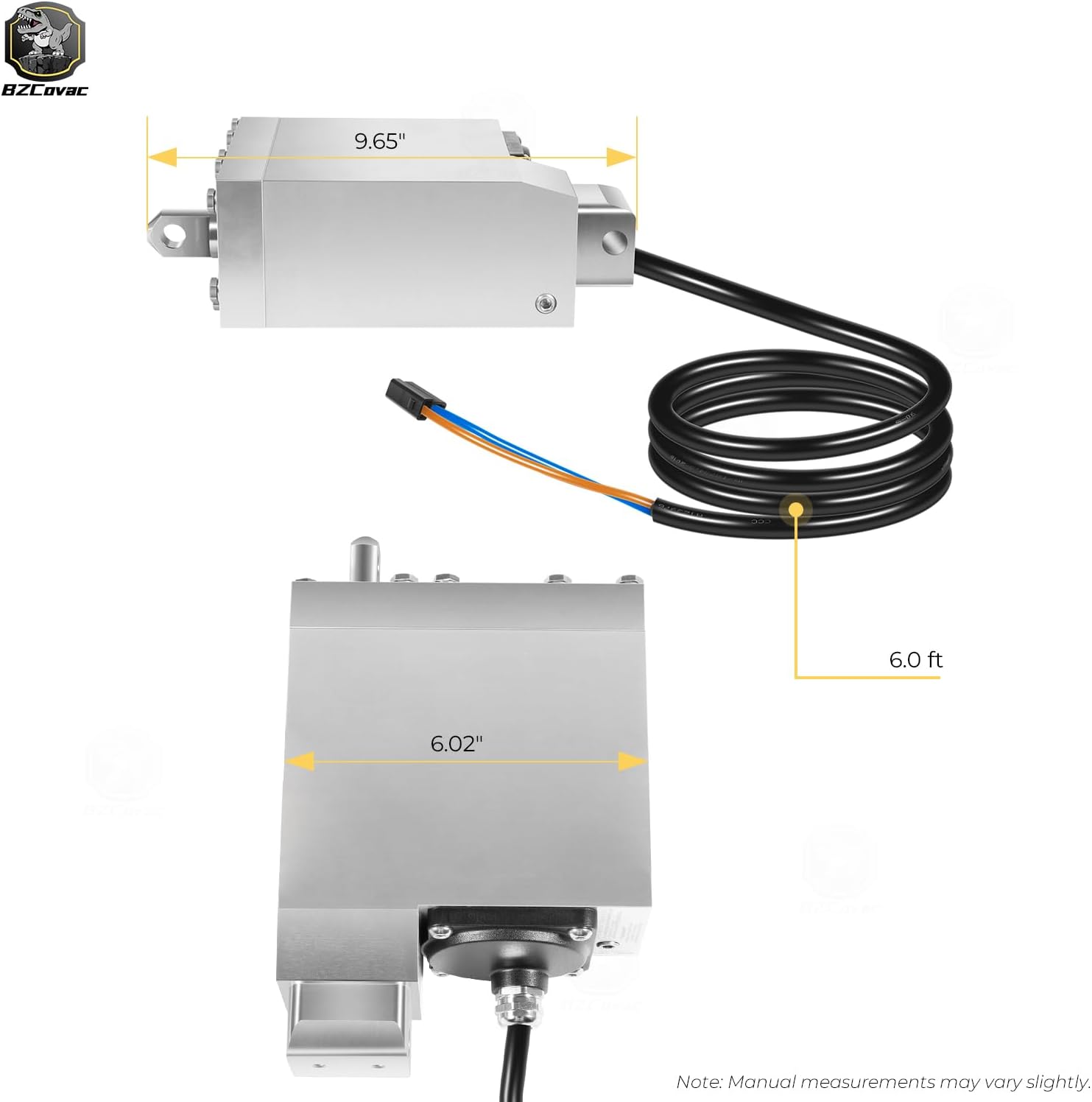

- Powerful Hydraulic Performance - Equipped with a permanent magnet 12V DC motor, delivering up to 5,000 lbs thrust when extending and 3,750 lbs when retracting. Features a 5" stroke and smooth, rapid travel for precise lift, trim, and tilt adjustments, ensuring optimal engine and boat performance
- Easy Replacement - Direct-fit replacement for standard Power-Lift, Hydro-Jacker, and Tilt & Trim systems with one-piece motor/hydraulic actuator assemblies. Not for high-speed jack plate models
- Restores Lift and Trim Function - Ideal solution when your jack plate or tilt & trim unit will not raise or lower due to actuator failure or internal leakage, bringing your tilt and trim system back to optimal operation
| Color | Silver |
|---|---|
| Brand Name | Bzcovac |
| Unit Count | 1.0 Count |
| Manufacturer | CHOW LLC USA |
| Model Number | 7050 |
| Material Type | 18-8 Stainless Steel, 6061-T6 Aluminum Alloy |
| Mounting Type | Transom Mount |
| Included Components | Hydraulic Actuator Assembly |
| Manufacturer Warranty Description | 1 Year Manufacturer |
