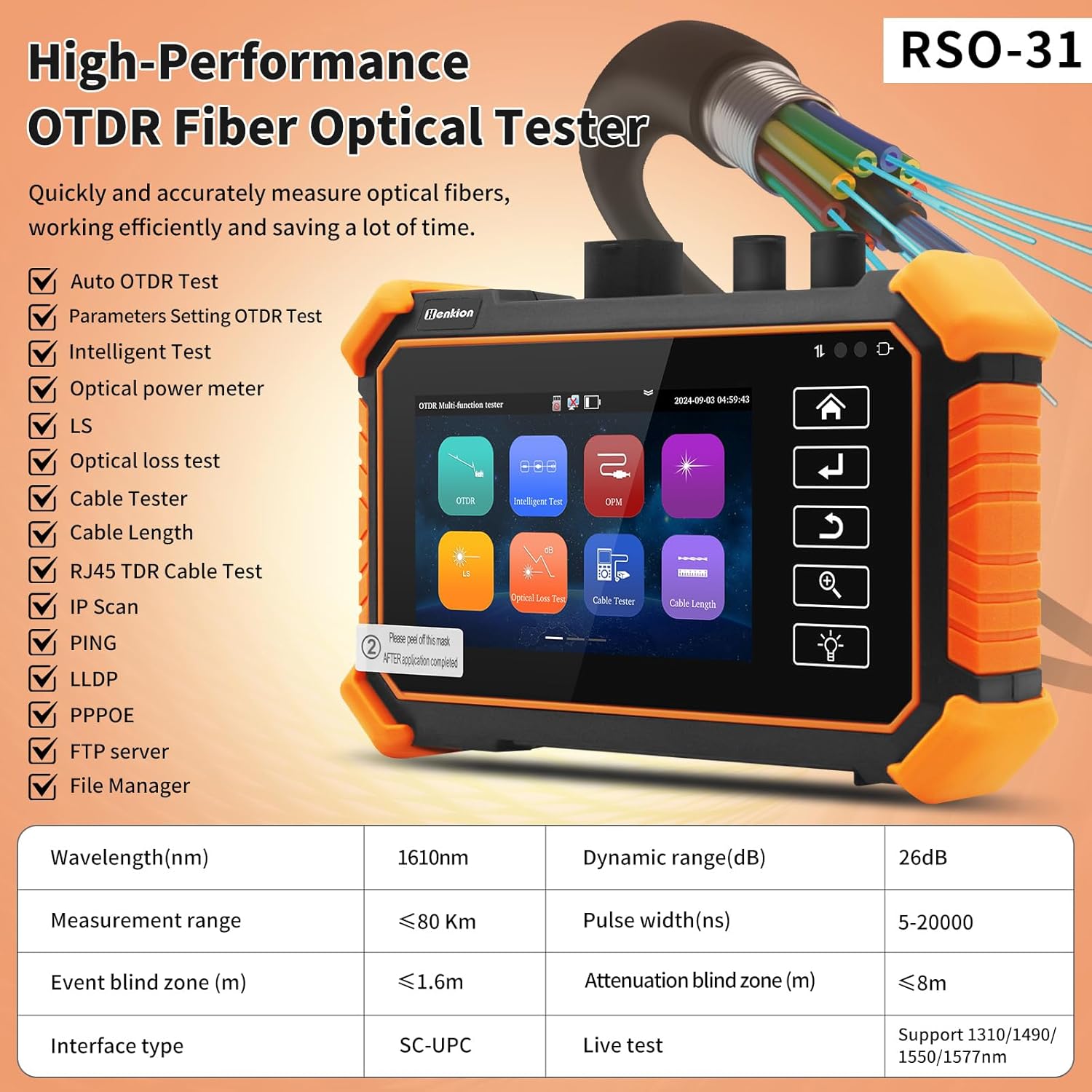

Henkion OTDR Fiber Optic Tester Live Fibers Teste. OPM,LS,OLS,VFL, Event Map,Cable Tester,8 Style of Fiber Adapters File Setting/Report (RSO-31 1610nm 26dB)
Product details
| Management number | 219326553 | Release Date | 2026/05/03 | List Price | $103.96 | Model Number | 219326553 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
- 【Intelligent OTDR measurement RSO-50】OTDR fiber optical tester provides wavelength of 1610nm and dynamic range of 26dB,the max test distance 150km.For auto range mode:only select the wavelength and test time,quickly perform the test.For parameters setting mode:Testing after setting parameters distance scope,pulse width,duration of measurement etc.Curvest/map are displayed simultaneously.The 1610nm 26dB Model support 1310/1490/1550/1577nm live test.
- 【Curve Analysis & Shortest EDZ ADZ & Data Storage】The OTDR fiber tester can analyzes the curve automatially,touch screen zoom or move curves operation.The tested results are displayed in the form of a list.Event list clearly reflects the type of event,distance,loss,decay,reflection. Shortest event dead zone (1.6m) and attenuation dead zone (8m). Save the current one or more curve trajectory graphs ,creat trace reports to the storage path.SOR standard file format PDF/EXCEL.
- 【 OPM LS OLS Tools 】4 inch IPS touch screen OTDR tester,800*480 resolution. Optical power meter--It is used for optical power testing and Fiber link loss relative measurement. Optical loss test--used to test the insertion loss of optical passive devices.
- 【Event map&Cable Tester/Length】Event map can one key automatic test,and the information such as the length of the optical fiber link to be measured,the type of the joint and the position of the breakpoint are displayed graphically.Test UTP cable connection status and display on the screen.Detect the near-end,mid-end and far-end fault point of RJ45 cable connector,also can test shield cable.Measure the disconnection(open circuit status)position of BNC cables,RJ45 network cables,RJ11 cable etc.
- 【More】 Tester Dimension/Weight:7.2x4.33x1.61inch / 1.01lbs.Continue to browse our web page to get more detailed parameters.Different models support different functions. Professional OTDR/Cable/Network test tools. Henkion OTDR fiber tester series include RSO-4000 series, RSO-5000 series, RSO-50 series, RSO-65 series,RSO-73 series,RSO-85 series.
- Laser Type: Class 2; Power<1mW,Wavelength:650nm
