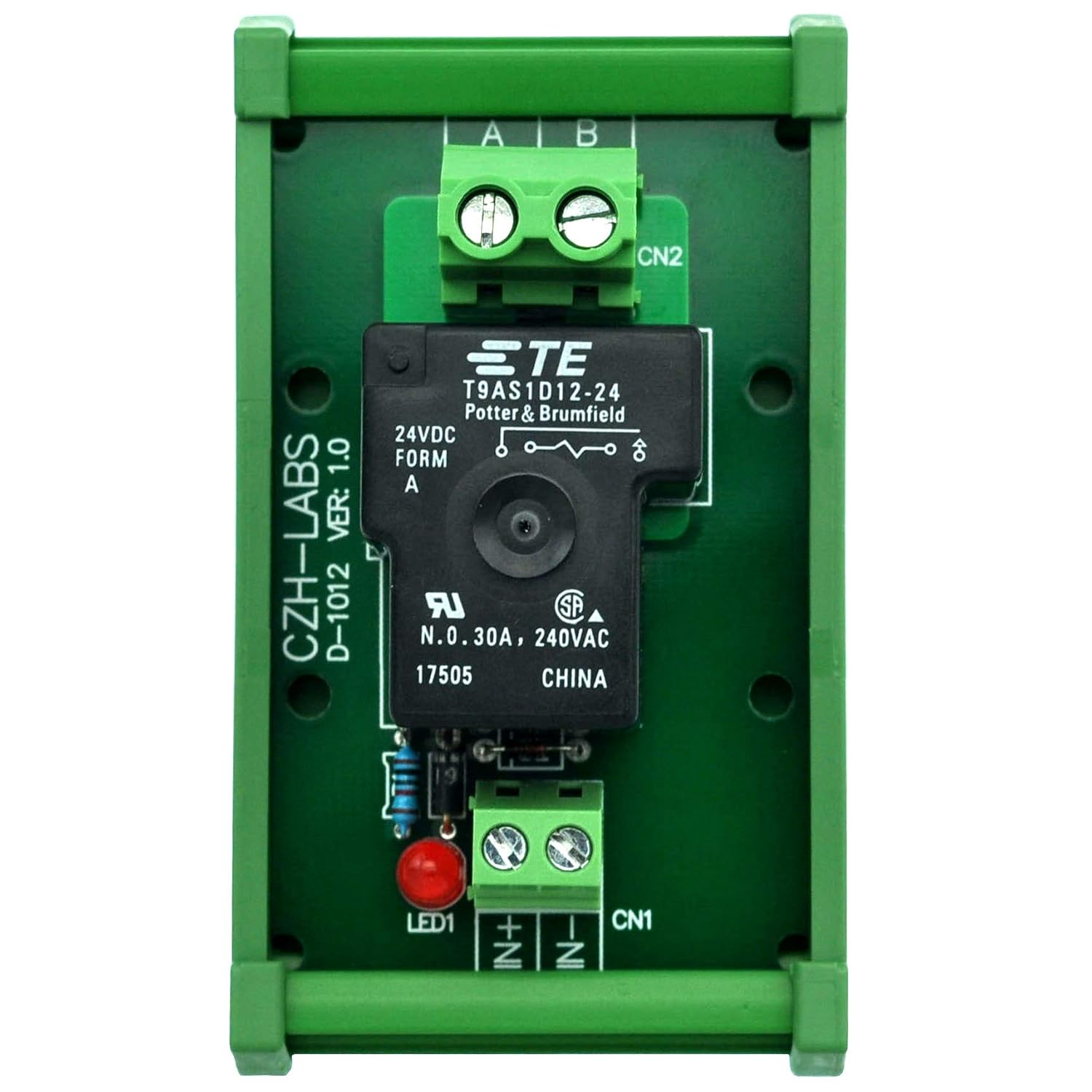

CZH-Labs DIN Rail Mount 24V Passive SPST-NO 30Amp Power Relay Module.
Product details
| Management number | 218152030 | Release Date | 2026/05/03 | List Price | $8.80 | Model Number | 218152030 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
DIN Rail Mount Passive 1 Channel SPST-NO 30 Amp Power Relay Module. Part Number: MD-D1012T/24V The item no paper instructions, please download the PDF file, and before buying please read the file: https://images-na.ssl-images-amazon.com/images/I/A1yzdGSnKLL.pdf This item has been assembled, and electrical test passed. TE T9AS1D12-24 30Amp power relay. High quality terminal block connectors (output is real 30Amp high power terminal block). LED indicator for each relay channel. FR-4 Fiber glass PCB (Double Layer). High quality DIN rail mount carrier, can support width 35mm /32mm / 15mm rail. Size: 48mm x 87mm x 50mm. Relay characteristic: Rated Load (Resistive load): 30A at 250VAC, 20A at 28VDC. Coil action voltage: DC 19~29V, recommended DC 24V. Coil action current: 40mA, at DC24V. Terminal block characteristic: Input terminal: Wire range 26-12AWG Mechanical Torque 0.4Nm(3.5Lb-In.) Strip length 7mm Dimensions Pitch 5.0mm(.197") Screws M2.5 Rated current 16 Amp Output terminal: Wire range 26-10AWG Mechanical Torque 0.5Nm(4.4Lb-In.) Strip length 8mm Dimensions Pitch 7.62mm(.3") Screws M3 Rated current: 30 Amp
- DIN Rail Mount Passive 1 Channel SPST-NO 30 Amp Power Relay Module.
- Part Number: MD-D1012T/24V
- TE T9AS1D12-24 30Amp power relay.
- FR-4 Fiber glass PCB (Double Layer).
- High quality DIN rail mount carrier, can support width 35mm /32mm / 15mm rail.
| Brand Name | Electronics-Salon |
|---|---|
| Unit Count | 1.0 Count |
| Part Number | MD-D1012T/24V-1 |
| Coil Voltage | 24 Volts |
| Contact Type | Spst |
| Manufacturer | Electronics-Salon |
| Mounting Type | DIN Rail Mount |
| Connector Type | Screw |
| Current Rating | 30 Amps |
| Operation Mode | Automatic |
| Contact Material | Silver |
| Specification Met | Din |
| Contact Current Rating | 30 Amps |
| Maximum Switching Current | 30 Amps |
| Maximum Switching Voltage | 24 Volts |
| Minimum Switching Voltage | 19 Volts (DC) |
