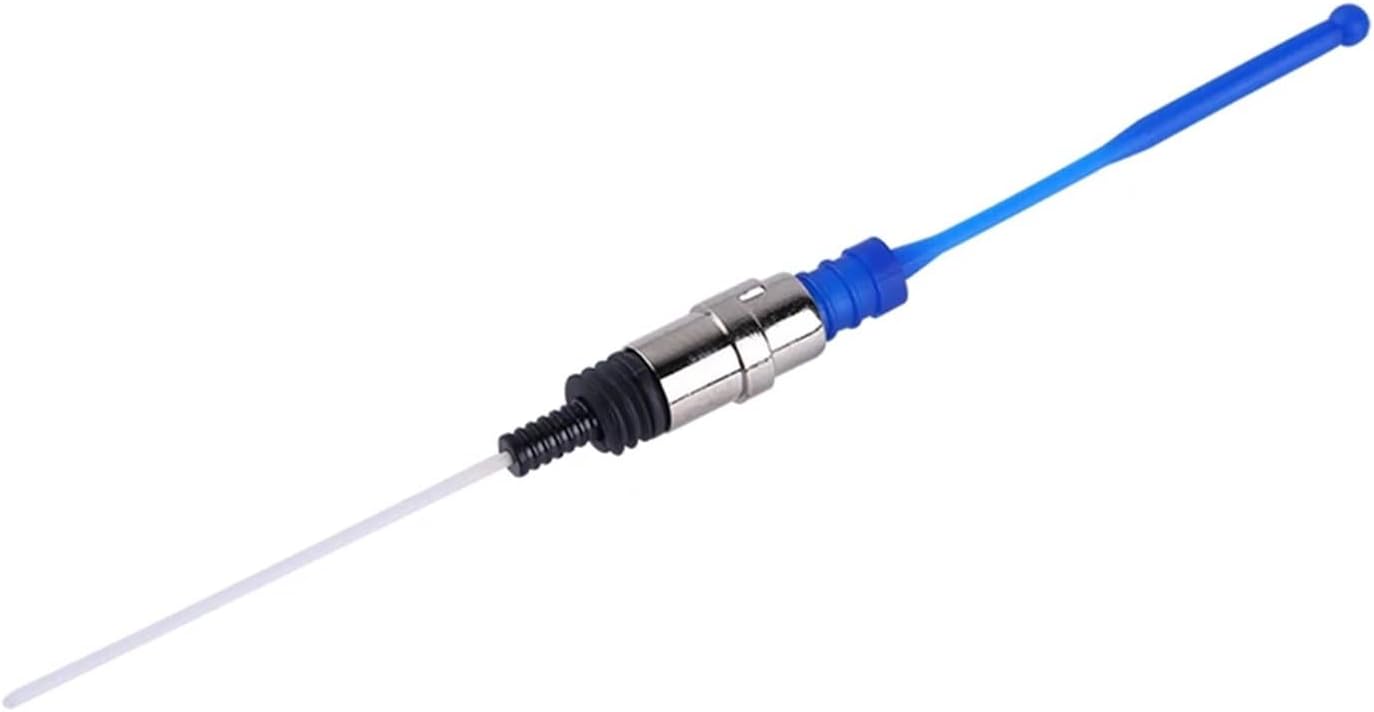

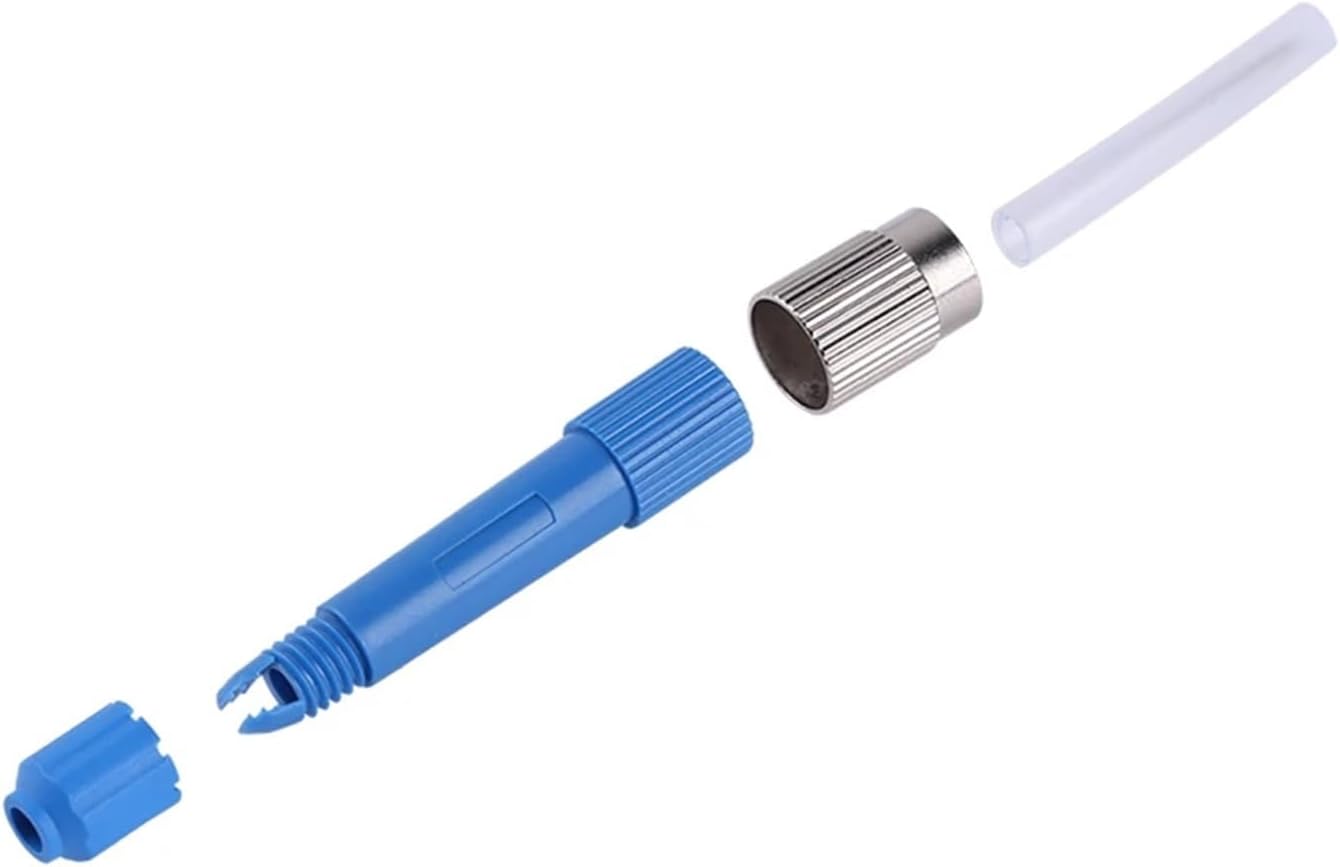

Communication Equipment 100PCS FC APC Single-Mode FTTH Fiber hot melt Quick Connection FC FTTH Fiber Optic Fast Connector FC Connector Optical Fiber Connector
Product details
| Management number | 220364472 | Release Date | 2026/05/03 | List Price | $105.90 | Model Number | 220364472 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
100PCS FC APC single-mode FTTH Fiber hot melt quick connection FC FTTH Fiber Optic Fast Connector FC ConnectorProduct AttributesHot melt fast connector is the same as fiber splicing, but its fusion point at the end of the internal connector, the equivalent of a hot melt to the pigtail pigtails saved,This benefit is no need for welding after a good extra protection, such as optical fiber splice protection plate, jumper connector boxes, wiring boxes. With respect to the mechanicalType quick coupler, this paragraph utility model can be improved following the quick connector contacts life, reduce maintenance costs later.Applications:CATVActive device terminationTelecommunication networksMetroLocal Area Networks (LANs)Data processing networksTest equipmentPremise installationWide Area Networks(WANs)Specifications:Singemode(UPC)Singemode(APC)MultimodeInsertion loss0.2db0.2db0.25dbReturn loss55db65db30dbDurability0.2db typical change, 1000 times matingOperating Temperature-45 to +85 degreeFerrule Hole Sizes125.0+1/-0um, Concertricity:1.0um125.0+1/-0um, Concertricity:0.5um125.0um, Concertricity:3.0um125.3+1/-0um, Concertricity:1.0um125.3+1/-0um, Concertricity:0.5um127.0um, Concertricity:3.0um125.5+1/-0um, Concertricity:1.0um125.5+1/-0um, Concertricity:0.5um128.0um, Concertricity:3.0um126.0+1/-0um, Concertricity:1.0um126.0+1/-0um, Concertricity:0.5umProduct list:ItemConnector DescriptionConnector Singlemode 9/125ST/SC/FCLCMUMTRJ(female)MTRJ(male)DINE2000Connector Multimode (50/125 or 62.5/125)ST/SC/FCLCMUMTRJ(female)MTRJ(male)E2000Remark: 1. Above price is for assembled connectors2. The price for 0.9mm, 2.0mm&30mm boot is samePicture==========Fiber Type : Single ModeConnector Type : FC/UPCModel Number : FC APCModel Number : FTTH Fiber Optic Fast ConnectorQuantity : 100PCSStorage Temperature: : -45 to +85 degreeRepeatability: : 0.2dBDiameter: : 0.9mm, 2.0mm, 3.0mm, OthersMode: : single mode, multimodeDurability : 0.2db typical change, 1000 times matingExchange: : 0.2dB
- Fiber Type : Single Mode
- Connector Type : FC/UPC
- Model Number : FC APC
- Model Number : FTTH Fiber Optic Fast Connector
- Quantity : 100PCS
| Color | One Color |
|---|---|
| Model | HUIZHUGS |
| Brand Name | HUIZHUGS |
| Model Name | HUIZHUGS |
| Part Number | HUIZHUGS |
| Manufacturer | HUIZHUGS |
| Number of Items | 1 |
